1 | BACKGROUND SCREEN
TECH SPEC
Resolution real pixel pitch : 6 mm.
Cabinet size : 0,576 mts x 0,576 mts.
Total size screen : width 13 mts. x high 4 mts APROX.
Screen Total area : 52 mts2.
Total weight : 2000 kgs.
1 | DJ BOOTH SCREEN
TECH SPEC
Resolution real pixel pitch : 8 mm.
Cabinet size : 0,64 mts. x 0,64 mts.
Total size screen : width 13 mts. x high 2 mts APROX.
Screen Total area : 26 mts2.
Total weight : 1150 kgs.
2 | CENTER VENUE BANNER´S
TECH SPEC
Resolution real pixel pitch : 12 mm.
Cabinet size : 0.80 mts x 0,40 mts.
Total size screen : CUSTOM SIZE 13 x 0,8 mts EACH
Screen Total area : 44 mts2.
Total weight : 150 kgs each screen
2 | F.O.H RACKS
TECH SPECVideo Controller FULL HD (1920x1080p)
640x480 50-60 hz
800x600 50-60 hz
1024x768 50-60 hz
1280x720 50-60 hz
1600x900 50-60 hz
1920x1080 50-60 hz
Available Inputs SDI- DVI- VGA -HDMI - Composite Video
DVI Cables
UTP CAT6 Cables
TRIPP LITE UPS 1000VA 800W USB
BLACKMAGIC RE-CLOCK SDI HD SPLITTER
HARRIS SDI HD MATRIX
DVI - SDI HD EXTENDER BLACKMAGIC
SDI HD TO DVI AJA
SDI HD BELDEN CABLES
LCD 21" DVI/SDI HD MONITOR FULL HD
LED SCREEN PERSPECTIVE VIEW
LED SCREEN PIXEL MAP SPECS
LED SCREEN PIXEL MAP SPECS n°2
PIXEL MAP

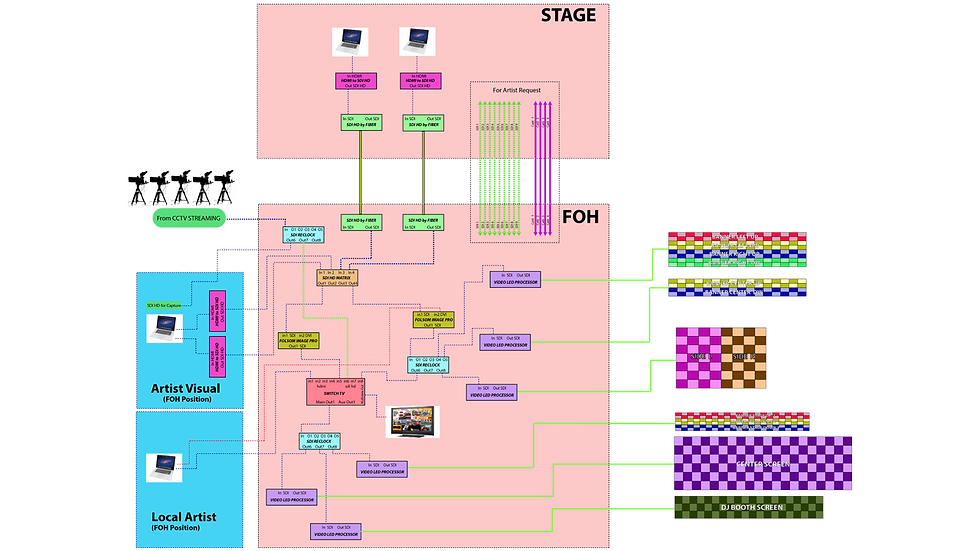

CONNECTIVITY DIAGRAM
PERRY´S VIDEO
3 | UP STAGE BANNER´S
TECH SPEC
Resolution real pixel pitch : 12 mm.
Cabinet size : 0.80 mts x 0,40 mts.
Total size screen : CUSTOM SIZE 18 x 0,8 mts EACH
Screen Total area : 45 mts2.
Total weight : 200 kgs each screen
2 | SIDE´S LED SCREENS
TECH SPEC
Resolution real pixel pitch : 8 mm.
Cabinet size : 1,30 mts x 0,98 mts.
Total size screen : 5 W X 7 H EACH
Screen Total area : 70 mts2.
Total weight : 1500 kgs each screen
4 | SIDE´S BANNERS
TECH SPEC
Resolution real pixel pitch : 12 mm.
Cabinet size : 0.80 mts x 0,40 mts.
Total size screen : CUSTOM SIZE 13 x 0,8 mts. EACH
Screen Total area : 22 mts2.
Total weight : 150 kgs each screen
PIXEL MAP
